Part Markings For U.S. Rifle M1917

*Click on the part name to view a picture of that part!

PART EDDYSTONE REMINGTON WINCHESTER

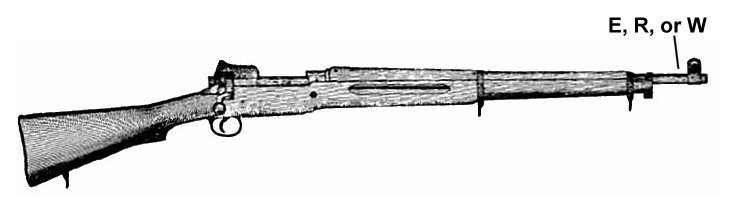

BARREL E R W

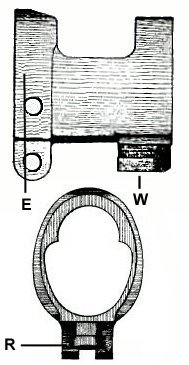

BARREL BAND UPPER E R W
BARREL BAND LOWER E R W

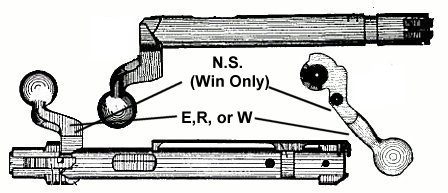

BOLT E R W
BOLT STOP E R W
BOLT STOP SPRING E R W
BOLT STOP REST E R W
BOLT SLEEVE E R W

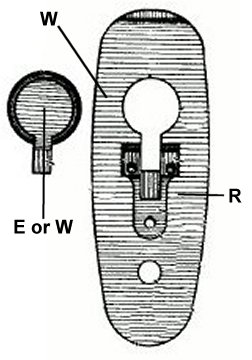

BUTTPLATE Not Marked R W
BUTTPLATE TRAP E Not Marked W
COCKING PIECE E or "EN" R or "EN" W
EJECTOR E R W
EXTRACTOR E R W
FIRING PIN E or "EN" R or "EN" W
FLOOR PLATE E R W
FLOOR PLATE RELEASE E R W
FOLLOWER E R W

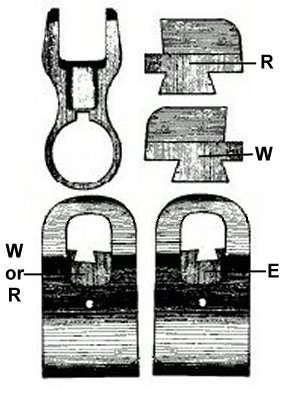

SIGHT BASE FRONT E R W
SIGHT INSERT FRONT E or Blank R W

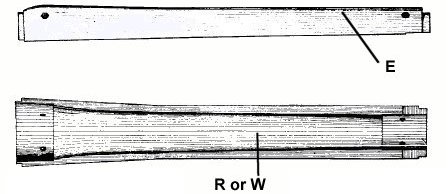

HANDGUARD LOWER (early only) E R W

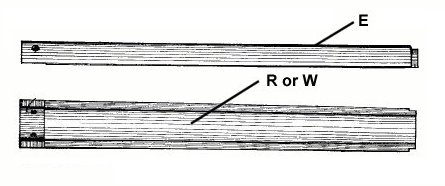

HANDGUARD UPPER (early only) E R W
HANDGUARD RING E R or Blank W

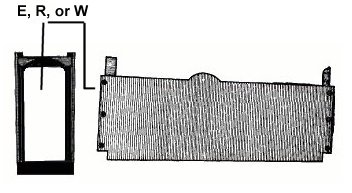

MAGAZINE BOX E R W
MAGAZINE SPRING E R W

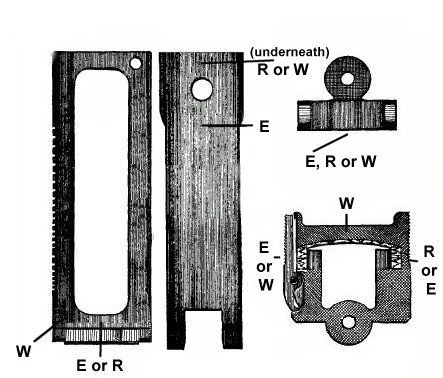

SIGHT ELEVATOR REAR E R W
SIGHT LEAF SPRING REAR E R W
SIGHT SLIDE REAR E R W
SIGHT SLIDE TAB REAR E Not Marked W

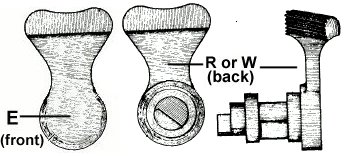

SAFETY E R W
SAFETY COVER E R W
SEAR E R W

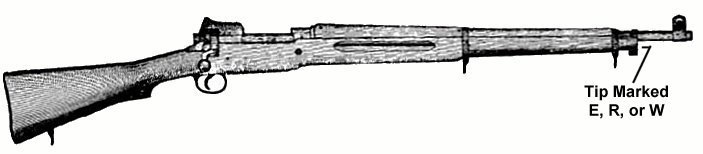

STOCK (at the tip of the forearm) E R W
SWIVEL REAR BASE E R W
SWIVEL SLING FRONT E Not Marked Not Marked
SWIVEL SLING REAR E R W
SWIVEL STACKING E Not Marked Not Marked
TRIGGER E R W

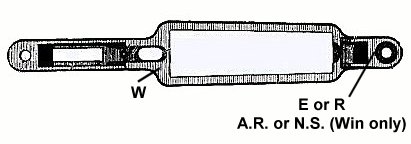

TRIGGER GUARD E R W
